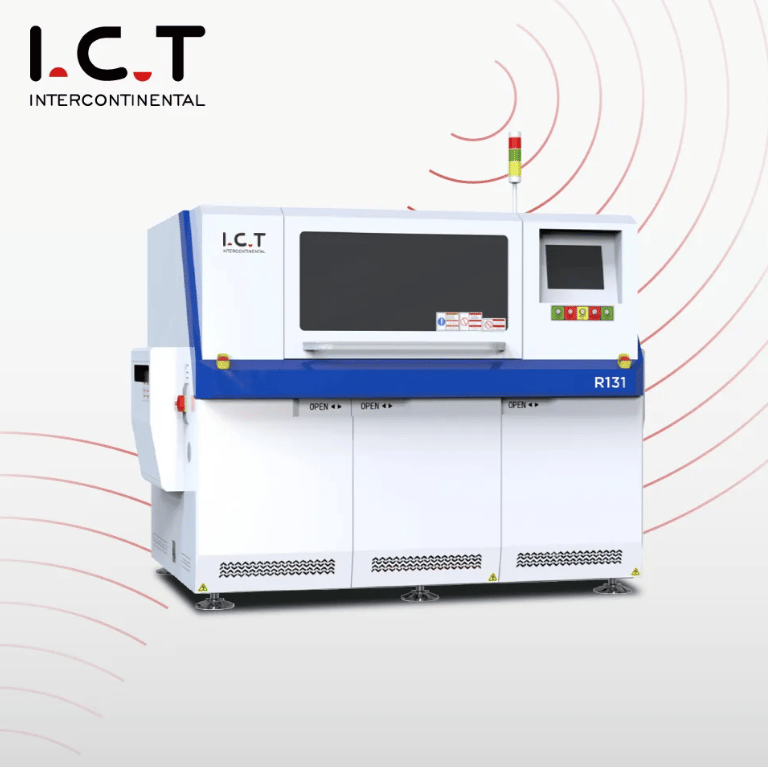

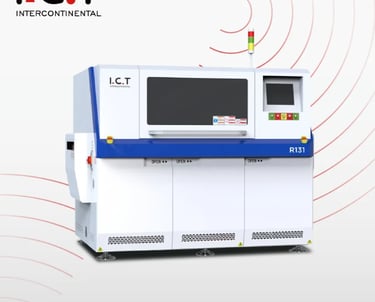

Efficient Automatic Radial Insertion Machine I.C.T-R131H

I.C.T-R131M Automatic Radial Insertion Machine is built for speed, accuracy, and simplicity in PCB assembly. Designed to make radial part inserting easier, this machine handles high-volume jobs with ease. It speeds up work, cuts assembly time, and delivers reliable results. This Automatic Radial Insertion Machine works well with different board types and part sizes. The strong frame and smart programming make operation smooth and easy to learn. It fits well in any factory setup, boosting productivity without making things complicated. As a top-tier auto insertion Machine, the unit combines rock-solid construction with precise positioning—so every radial component drops right into place. It’s perfect for busy lines that need quick changeovers, consistent output, and low error rates. Trust this Automatic Radial Insertion Machine to keep your workflow fast, steady, and dependable.

Automatic Radial Insertion Machine

High-speed inserting boosts assembly line output quickly
Ultra-precise placement with 0.05 mm accuracy every time
Supports 40 feeder inputs for flexible part handling
Auto-recovery handles jam or out-of-part interruptions smoothly
Easy control with touchscreen for simple operation
Insertion mount Machine design ensures quick setup changeover
Robust build quality gives long-lasting durability

Back

Accurate Insert System

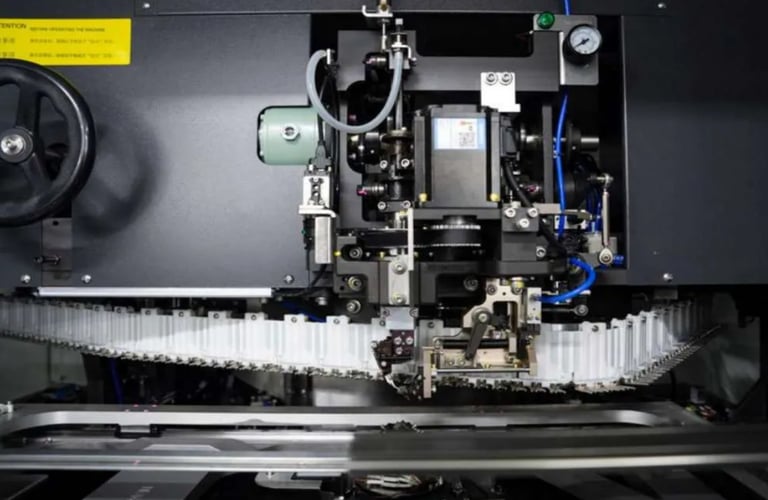

The Precision Insert Action makes sure each component lands exactly on target. It checks PCB hole position, then guides the part gently and firmly into place. This keeps misalignment or bent leads to nearly zero. The system adapts automatically to part height and shape, so mixed boards or mixed runs are handled without fuss. Fast, accurate, and smart—this insert action keeps your line efficient and parts where they belong.

Stable Bend System

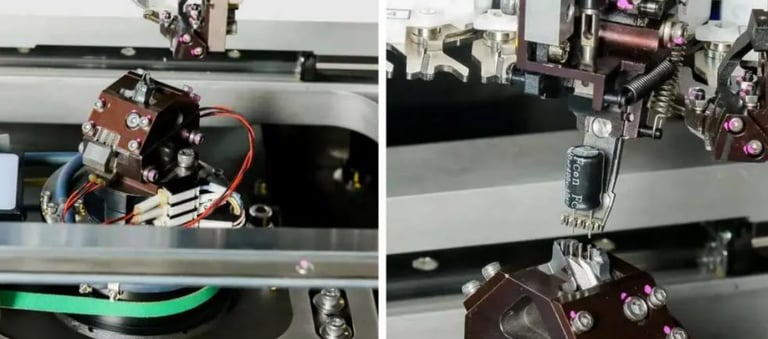

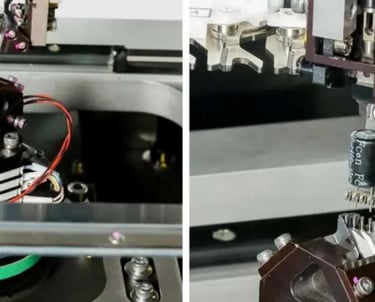

With Safe Bend Folding, the wire leads bend just right after insertion. That means components stand supported and steady before soldering. No bent wires, no loose parts—just solid hold and clean results. This system adjusts easily for different wire lengths and shapes. It’s smooth, damage-free bending that helps your boards look professional and work well.

Efficient Feeding System

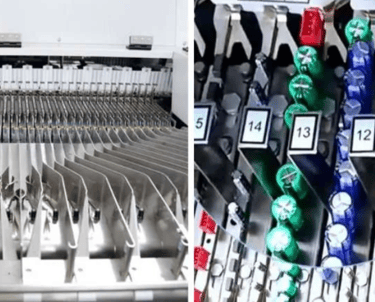

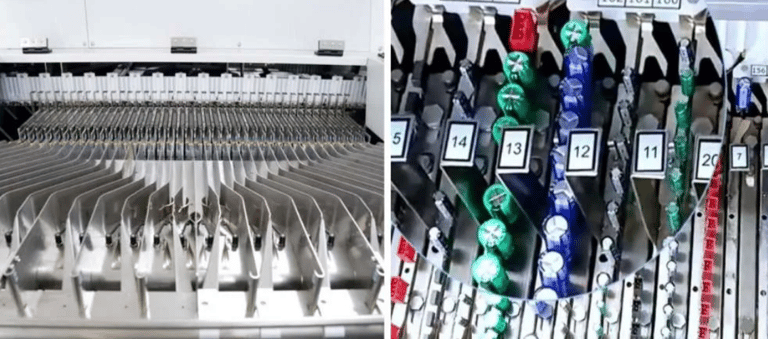

The Reliable Feed Flow ensures parts move from feeders into the insertion path smoothly. It avoids jams and skips, keeping insertion steady. Handles up to 40 feeders, so part changeover is quick. Even with mixed part runs, the flow stays steady and accurate. You get more uptime, less error, and easier operation—great for busy production lines.

Key Technical Specifications

Theoretical Speed 25000CPH
Component Feeder Input: 40pcs
Insertion Span:
2P:2.5mm/5.0mm;
3.5P:2.5mm/5.0mm/3.5mm;
3P:2.5mm/5.0mm/7.5mm;
PCB Size: 50*50~508*381mm
Insertion Area: 50*40~500*375mm

Machine size:L1760*W2140*H1600mm
Machine weight: Approx. 2200 kg
