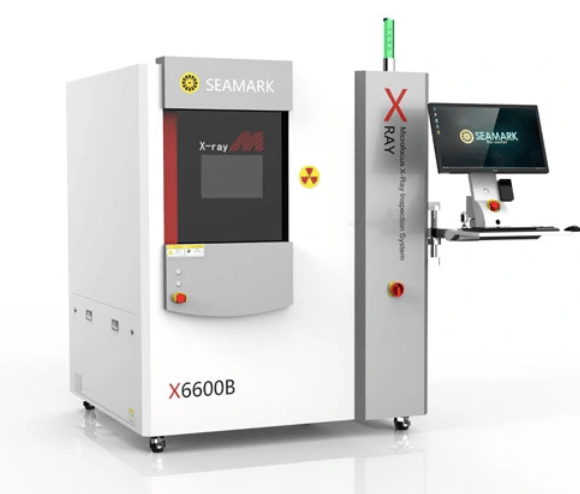

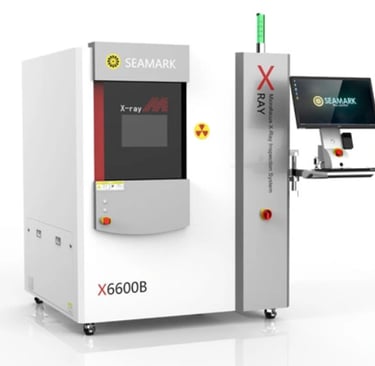

X6600B Offline X-Ray Inspection Machine

X6600B is a 6-axis universal offline precision micro-focus X-ray inspection equipment. It has the characteristics of high magnification, multi-angle,and large-area inspection platform. At the same time, it has one-button door opening and closing,and real-time monitoring of radiation conditions around the equipment to ensure the safety of the environment and operators.

Features of X6600B Offline X-Ray Inspection Machine

• The X and Y axes of the platform are driven by high-precision lead screws to ensure inspection accuracy.

• when the conventional vertical inspection cannot meet the requirements, the T-axis tilt inspection function can be used, and the inspection range is more comprehensive.

• With automatic calibration function

• Real-time monitoring of radiation value, multiple protection of operator's personal safety

• One-button automatic opening and closing of the movable door, convenient for personal to work

• Large inspection platform to ensure a wider range of equipment inspection sizes

• Fingerprint verification

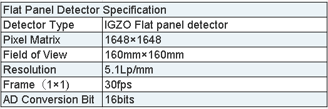

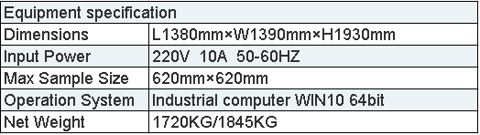

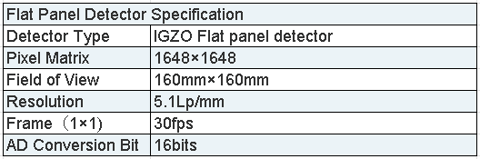

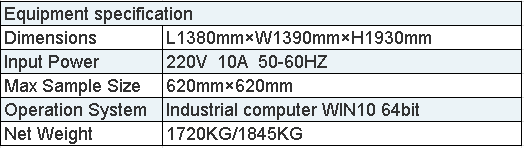

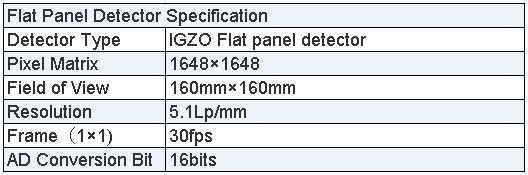

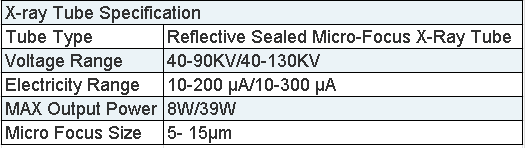

Specification of X6600B Offline X-Ray Inspection Machine
